Inquiry No.1T036

【Custom Made】ISO 17480: 2015 45 Degree Complete Peel Test Fixture for Container Lid

ISO 17480: 2015 45 Degree Complete Peel Test Fixture for Container Lid

Description Relevant Information and Materials Relevant Products Measurement Example Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Standards-Compliant Measurement
  4. ISO 17480: 2015 45 Degree Complete Peel Test Fixture for Container Lid

Description Add to favorites

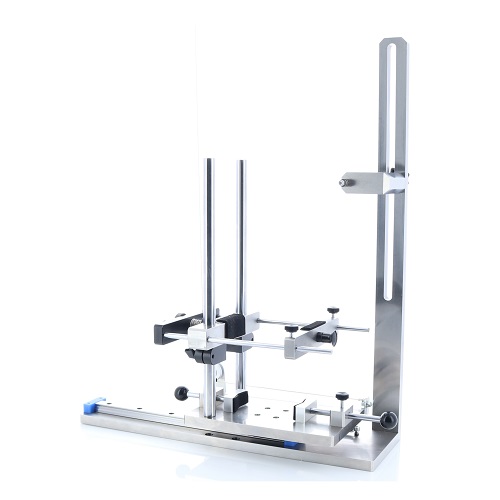

Inquiry No.1T036 Test Image Inquiry No.1T036 Test Image

Inquiry No.1T036 Inquiry No.1T036

Inquiry No.1T036 Test Image

Inquiry No.1T036

Cautions

We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.


This custom-made attachment enables 45 degree complete peel test of heat-sealed container lid complying with the corresponding part of ISO 17480: 2015.

Feature

  • Designed for 45 degree complete peel test of heat-sealed container lid such as instant cup noodle
  • Starts peeling at 45 degree, simulating the actual performance
  • Ideal for peel test of packaging film especially in food and medical industries
  • Complies with the corresponding part of ISO and JIS standard
  • Offers modification for special requirements on shape and size of the sample

Relevant Industrial Standards

ISO 17480 [ 2015 ] [Packaging - Accessible design - Ease of opening] (corresponding part only)
