Inquiry No.1T041

【Custom Made】Compression Calibration Kit

Compression Calibration Kit

Description Relevant Information and Materials Relevant Products
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. In-house Calibration
  4. Compression Calibration Kit

Description Add to favorites

Inquiry No.1T041 High Capacity Compression Calibration Kit Inquiry No.1T041 High Capacity Compression Calibration Kit

Inquiry No.1T041 Low Capacity Compression Calibration Kit Inquiry No.1T041 Low Capacity Compression Calibration Kit

Inquiry No.1T041 Calibration Image Inquiry No.1T041 Calibration Image

Inquiry No.1T041 High Capacity Compression Calibration Kit

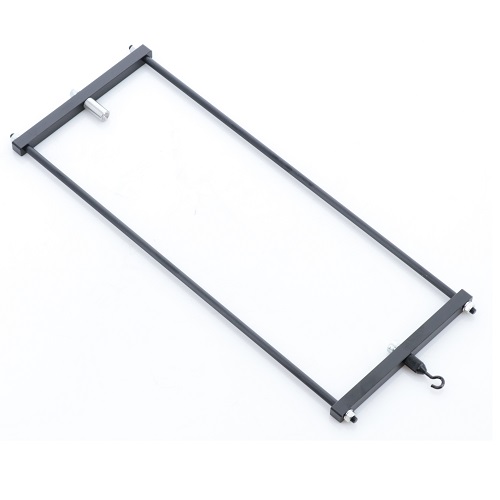

Inquiry No.1T041 Low Capacity Compression Calibration Kit

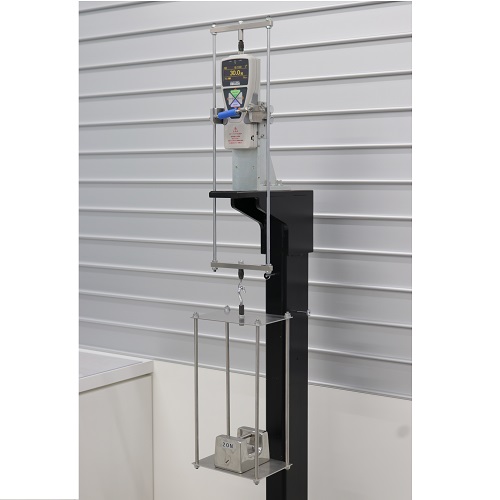

Inquiry No.1T041 Calibration Image

Cautions

We will create design proposals and quotations tailored to your specific requirements. Please feel free to contact us to discuss your needs. Kindly note that, unlike standard products, there is no fixed price, so we will provide a price estimate through our distributor after finalizing the specifications.


IMADA offers calibration kit to calibrate the compression load of IMADA force gauges. The calibration plate with low error is designed to put on the weight and be also used as a weight. For instance, the error of 5N plate is ±0.00074N. It can be utilized for daily check and in-house calibrations.

Feature

  • Designed to calibrate compression load of IMADA force gauges
  • Utilized for daily check and in-house calibration (weight is not included)
  • The calibration plate with low error designed to put on the weight and be also used as a weight
  • High capacity (more than 100N) and low capacity (20N-100N) available
  • Performs calibration on the calibration stand (recommend)
