Standard Type Motorized Torque Stand

MTS series

  1. Force Measurement IMADA
  2. PRODUCTS
  3. Motorized Torque Test Stands
  4. MTS series

Description Add to favorites

MTS-10N MTS-10N

MTS-10N-L MTS-10N-L

MTS-10N

MTS-10N-L

For DTXS/A

Motorized

Digital Speed Ctrl

Multi Function

Height Option

MTS series is the dedicated motorized torque stand for the screw cap tester with 10N-m(1000N-cm) capacity. It enables torque measurement with higher reproductivity thanks to its constanct rotation speed. The operation can be controlled by torque values and rotation periods. It also enables durability tests using repetition function.

Feature

  • Realizes highly repeatable measurements with constant test speed by simple operation
  • Possible to control the operation by torque values and rotation periods by connecting to DTXS/DTXA with a dedicated cable
  • Suitable for durability tests of bottle caps and circuit boards using repetition function by setting the required conditions
  • Optional software available for real-time graphing of torque vs. time to enhance measurement efficiency

Example of Product Configuration

MTS-10N(1)
MTS-10N-2L(1)

MTS-10N

1M4001A
Configuration 1 for MTS series1M4001A

Features

It provides constant rotation speed, producing greater precision.

We offer wide range of clamps / sample holding attachments to fit your sample’s sizes, shapes and materials.

inquiry number

1M4001A

Present the “inquiry number” below when you contact us, for prompt assistance.

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

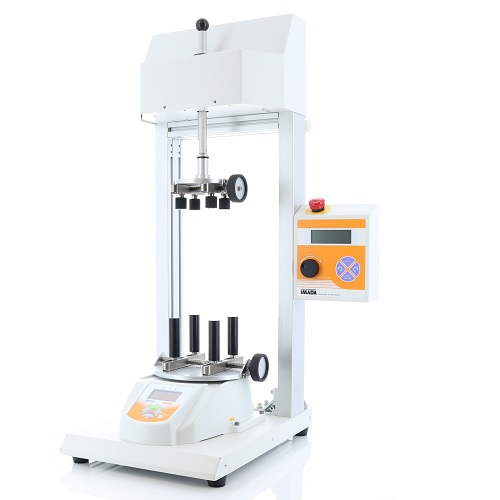

MTS-10N-2L

1M4001B
Configuration 2 for MTS series1M4001B

Features

It provides constant rotation speed, producing greater precision.

We offer wide range of clamps / sample holding attachments to fit your sample’s sizes, shapes and materials.

inquiry number

1M4001B

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Screw cap torque tester

DTXS-10N-TB-02

1

Motorized torque stand

MTS-10N-2L

1

Optional attachment

MT-TB

1

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

User Guide Videos

Setting

User Setting

Mounting

Mount Torque Gauge/Attachments/Adjust the Height of Attachment

Measurement

Manual Operation Mode/Fine adjustment in JOG Mode

Setting

ONE WAY mode (Operation Control with Torque Value and Continuous Rotation Period)

Setting

CONTINUOUS Mode (Setting / Measurement / Interruption)

Setting

Zero Reset of Peak Values/Automatic Memory and Output of Measured Values (Automatic mode)

Unit
Converter
Unit Converter

Convenient Unit/Torque/
Tension conversion

6 Significant Digits (*Significant digits are meaningful digits that do not include zeros, which are used to indicate the scale.)
