QFP Lead Hook/Chip Shear Jig

SJ series

SJ series

Description Relevant Information and Materials Example of Product Configuration Relevant Products Measurement Example Videos
CONTACT
  1. Force Measurement IMADA
  2. PRODUCTS
  3. Chip Components Tension/Shear Test Attachment
  4. SJ series

Description Add to favorites

SJ-QFP-01 SJ-QFP-01

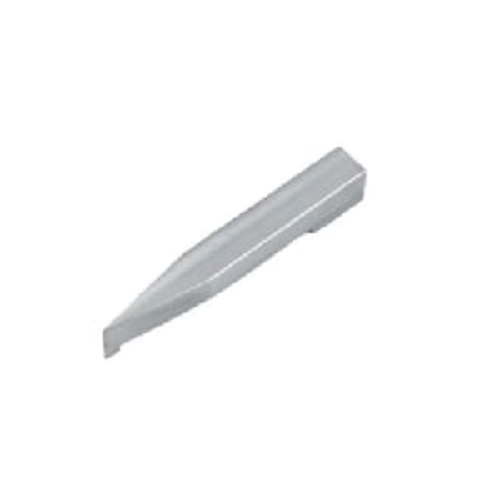

SJ-TIP-01 SJ-TIP-01

SJ-TIP-02 SJ-TIP-02

SJ-TIP-03 SJ-TIP-03

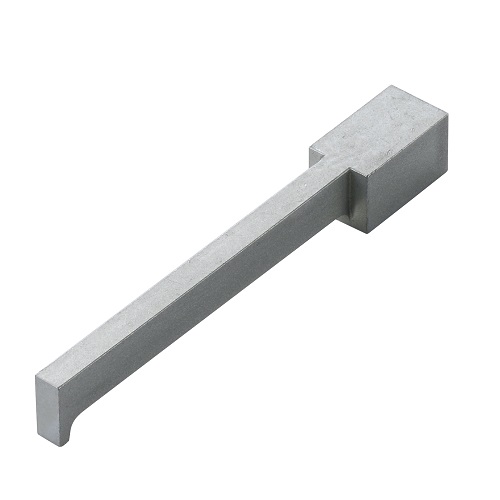

SJ-TIP-04 SJ-TIP-04

SJ-QFP-01

SJ-TIP-01

SJ-TIP-02

SJ-TIP-03

SJ-TIP-04

QFP Lead Pull Test

Solder Joint Test

Chip Shear Test

Lo-Mid Force

SJ series is QFP lead hook/Chip shear jig with 100N capacity for solder joint strength test. 5 types are available to meet your testing requirements. It complies with the corresponding part of IEC and JIS standards.

Feature

  • Designed to measure tensile strength and shear strength of solder joint
  • 5 types available to meet your testing requirements
  • Complies with the corresponding part of IEC and JIS standards

Relevant Industrial Standards

IEC62137-1-1 [ 2007 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-1: Pull strength test] (Corresponding part only)

IEC62137-1-2 [ 2007 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-2: Shear strength test] (Corresponding part only)

JIS Z3198-6 [ 2003 ] [Test methods for lead-free solders Part 6: Methods for 45°pull test of solder joints on QFP lead] (Corresponding part only)

JIS Z3198-7 [ 2003 ] [Test method for lead-free solders-Part 7: Method for shear strength of solder joints on chip components] (Corresponding part only)

JIS C 60068-2-21 [ 2006 ] [Environmental testing-Part 2-21: Tests-Test U: Robustness of terminations and integral mounting devices] (Corresponding part only)

Relevant Information and Materials

SJ series Specifications

Example of Product Configuration

SJ-QFP-01（1）
SJ-TIP-02（1）
SJ-TIP-03（1）

SJ-QFP-01

1S2008A
Configuration 1 using SJ-QFP-011S2008A

Features

For 45-degree pull strength test of solder joints complying with the corresponding part of standard

Designed to measure tensile strength of solder joint.

Consists of the upper jig SJ series and the lower jig SJS-100N-L(-S).

inquiry number

1S2008A

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Digital force gauge

ZTS-100N

1

Motorized test stand

EMX-500N-L

1

Optional attachment

SJ-QFP-01

1

Optional attachment

SJS-100N-L

1

Optional attachment

XST-500N

1

Optional cable

CB-528

1

Optional software

Force Recorder Standard

1

Relevant Industrial Standards

IEC 62137-1-1 [ 2007 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-1: Pull strength test] (Corresponding part only)

JIS C 62137-1-1 [ 2010 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-1: Pull strength test] (Corresponding part only)

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

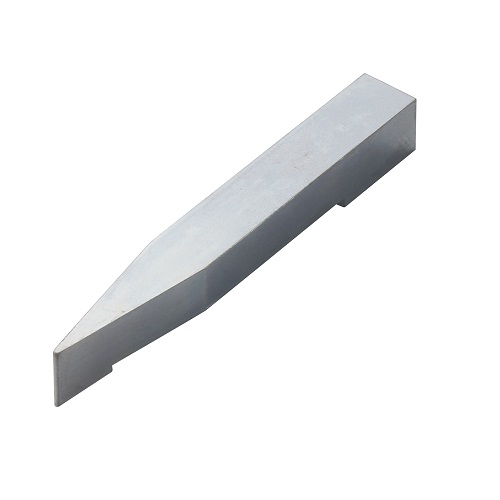

SJ-TIP-02

1S2009A
Configuration 1 using SJ-TIP-021S2009A

Features

For 90-degree shear strength test of solder joints complying with the corresponding part of standard

Designed to measure shear strength of solder joint.

Consists of the upper jig SJ series and the lower jig SJS-100N-L(-S).

inquiry number

1S2009A

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Digital force gauge

ZTS-100N

1

Motorized test stand

MX2-500N-L

1

Speed Range Change

-V90

1

Optional attachment

SJ-TIP-02

1

Optional attachment

SJS-100N-L

1

Optional attachment

XST-500N

1

Optional cable

CB-528

1

Relevant Industrial Standards

JIS Z 3198-7 [ 2003 ] [Test method for lead-free solders-Part 7: Method for shear strength of solder joints on chip components] (Corresponding part only)

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.

Add to favorites
CONTACT

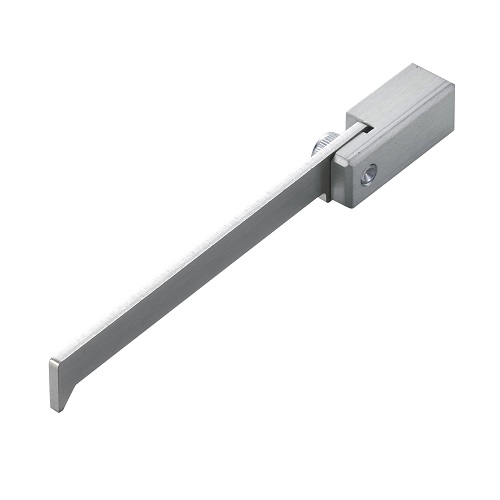

SJ-TIP-03

1S2010A
Configuration 1 for using SJ-TIP-031S2010A

Features

For 90-degree shear strength test of solder joints complying with the corresponding part of standard

Designed to measure shear strength of solder joint.

Consists of the upper jig SJ series and the lower jig SJS-100N-L(-S).

inquiry number

1S2010A

Present the “inquiry number” below when you contact us, for prompt assistance.


Add to favorites
CONTACT
Product used

Digital force gauge

ZTS-100N

1

Motorized test stand

EMX-500N

1

Optional attachment

SJ-TIP-03

1

Optional attachment

SJS-100N-S

1

Optional cable

CB-528

1

Optional software

Force Recorder Standard

1

Relevant Industrial Standards

IEC 62137-1-2 [ 2007 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-2: Shear strength test] (Corresponding part only)

JIS C 62137-1-2 [ 2010 ] [Surface mounting technology - Environmental and endurance test methods for surface mount solder joint - Part 1-2: Shear strength test] (Corresponding part only)

Cautions

Refer to specifications of each product for details.
Product configuration varies depending on the shape and characteristic of the sample, and measurement conditions.
The recommended capacity of measurement instruments varies depending on the expected force to be loaded.
