Calibration ISO/IEC 17025

What is Calibration?

Calibration is a process to verify whether a force gauge maintains good accuracy or not. Just same as a fine watch, a force gauge is supposed to be calibrated periodically by using calibration equipment compliant with national standards.
IMADA can provide the calibration accredited to “ISO/IEC 17025:2017”, an International Standard for Testing and Calibration Laboratories.

IMADA's Calibration

We have a fully equipped environment-controlled calibration center. Its independent floor minimizes the influences of vibration and the strict control of temperature/humidity realizes stable environment. Only the person who passed IMADA and ISO calibration examination can perform calibration.
All IMADA’s force gauges are calibrated (pre-shipment inspection) before delivery.

  • Inspection certificate (supplied in force gauges and testers for free) *
  • Calibration certificate (fee-based)
  • Traceability chart (fee-based)

*It is not supplied in some products such as load cells. Please check the specification of each product to confirm.

See Certificate Samples

We have been accredited to “ISO/IEC17025:2017”, an international Laboratories by an accreditation body, PJLA. Please make use of our ISO17025 calibration service to get more internationally reliable data.

What is ISO/IEC17025:2017?

ISO/IEC 17025:2017 is a global standard for testing/calibration laboratories. It includes management requirements and technical requirements, ensuring that accredited laboratories are competent to carry out specific testing/calibration tasks.
There is a move internationally to accept foreign testing/calibration data in recent years.
PJLA, our accreditation organization, is a MRA signatory of APAC (Asia Pacific Accreditation Cooperation), and ILAC (International Laboratory Accreditation Cooperation) as well as a member of NACLA (National Cooperation for Laboratory Accreditation).
In other words, testing/calibration data produced by the laboratories accredited by PJLA can be accepted in signatory countries as well.
Therefore we have obtained accreditation to ISO/IEC17025:2017 to be competence of providing internationally acceptable calibration data.

See Certificate Samples

Accreditation scope： Calibration of Mechanical Force Gauge, Digital Force Gauge, Digital Force Gauge of Sensor Separate Type and Wire Harness Tester and Digital Torque Meter using Reference Weight and Reference Load Cell
Certificate number： 72623
Initial Accreditation Date： July 20, 2012
Revision Date：August 14, 2024


Calibration： Compression/Tension/Torque
Range covered：

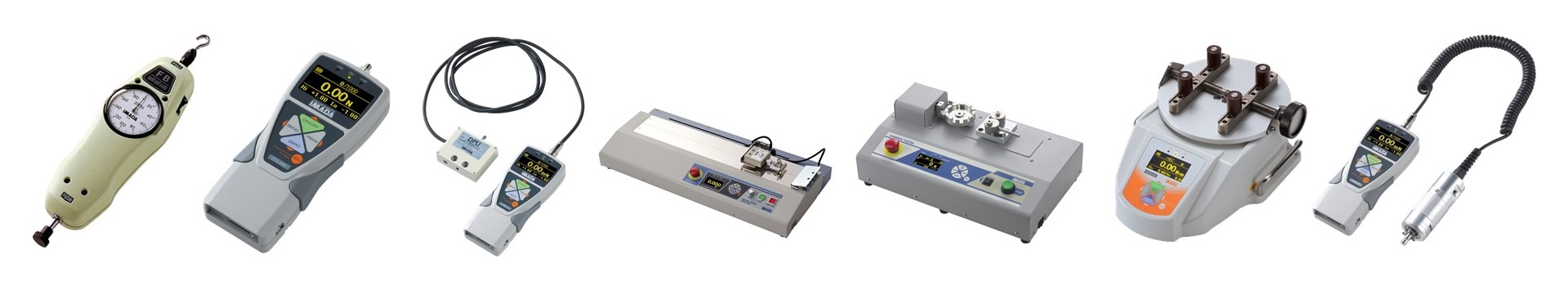

  • Mechanical force gauge : [Compression]  From 0.5N to 3000N [Tension] From 0.5N to 3000N
  • Digital force gauge (Integrated model (includes Peeling Tester IPTS series)): [Compression] From 0.2N to 20kN [Tension] From 0.05N to 5000N
  • Digital force gauge (Separated sensor type (Load cell: DPU)): [Compression] From 0.2N to 20kN [Tension] From 0.05N to 5000N
  • Digital force gauge (Separated sensor type (Load cell: LM/LC/DD2/LMT)): [Compression] From 1N to 20kN
  • Automatic crimp pull tester : [Tension] From 100N to 1000N
  • Digital Torque Meter: [Torque] From 0.05N-m to 10N-m


*Please contact us for specific compatible models.

The Certicficate (PDF)

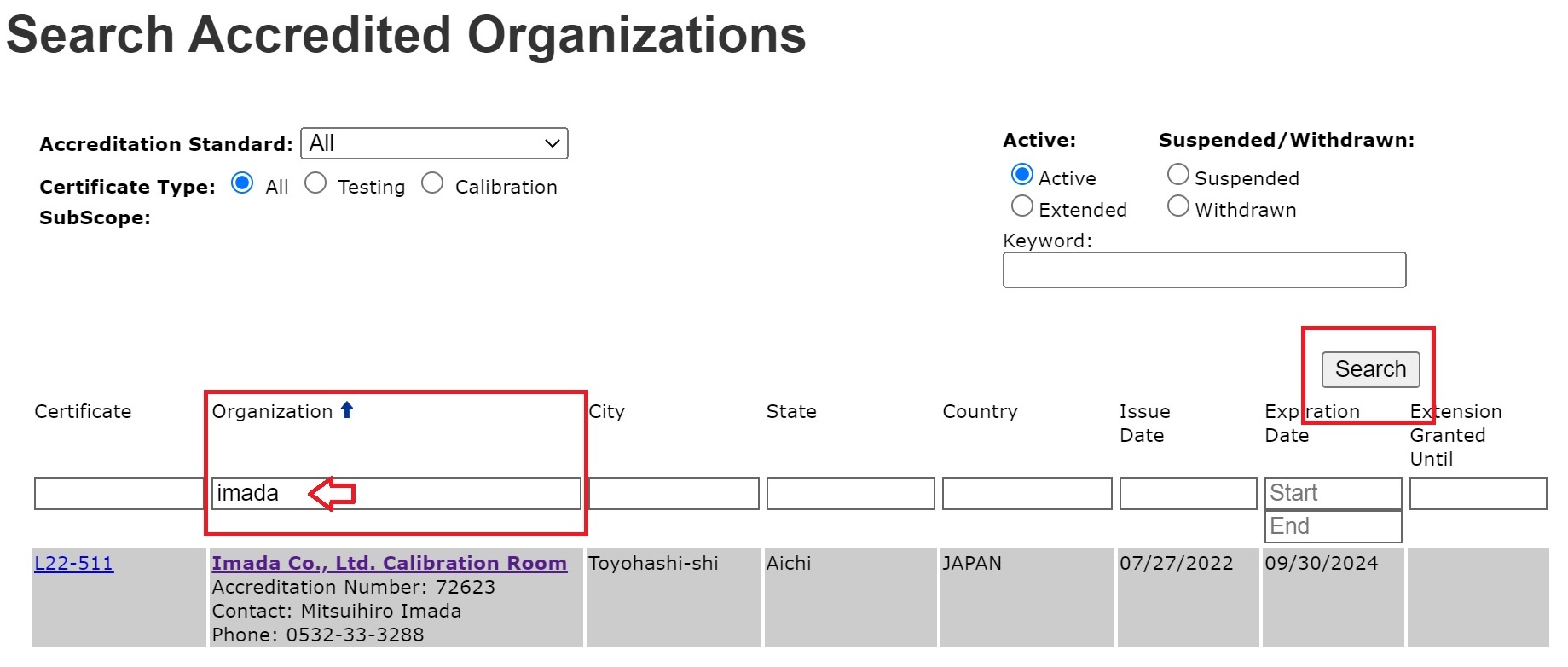

The latest version of the certificate (PDF) is available on the organization’s official website:

https://www.pjlabs.com/search-accredited-organizations

Visit the website above, enter our company’s name “Imada”, and click “Search.” Then, the certificate comes up.



Inquiry

Some of our distributor provide calibration services.  Please contact your local distributor for details of the service.

Find distributor


Or contact us for technical support or ISO 17025 calibration.

CONTACT US

When you apply for ISO 17025 calibration, please fill out the following application.
